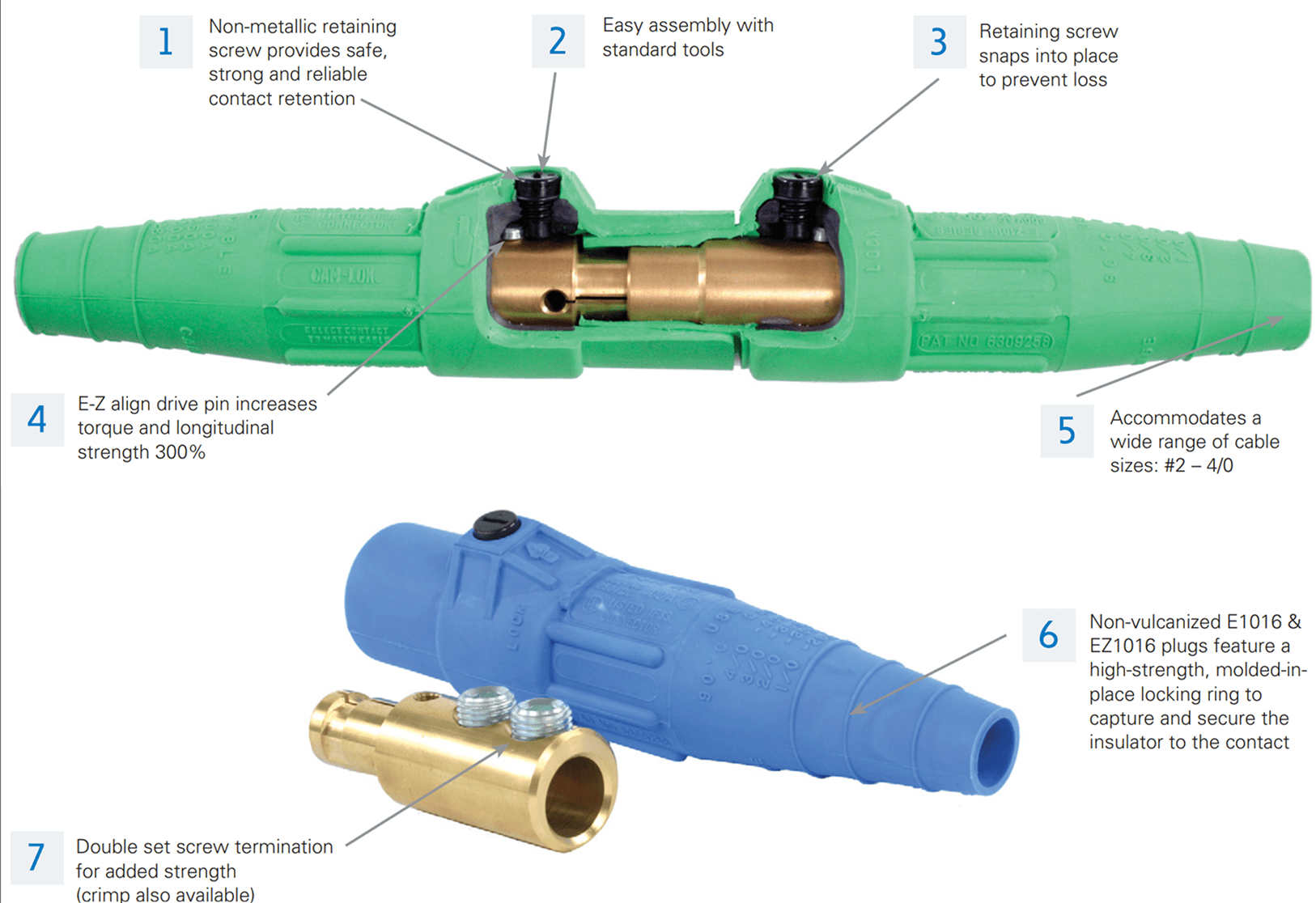

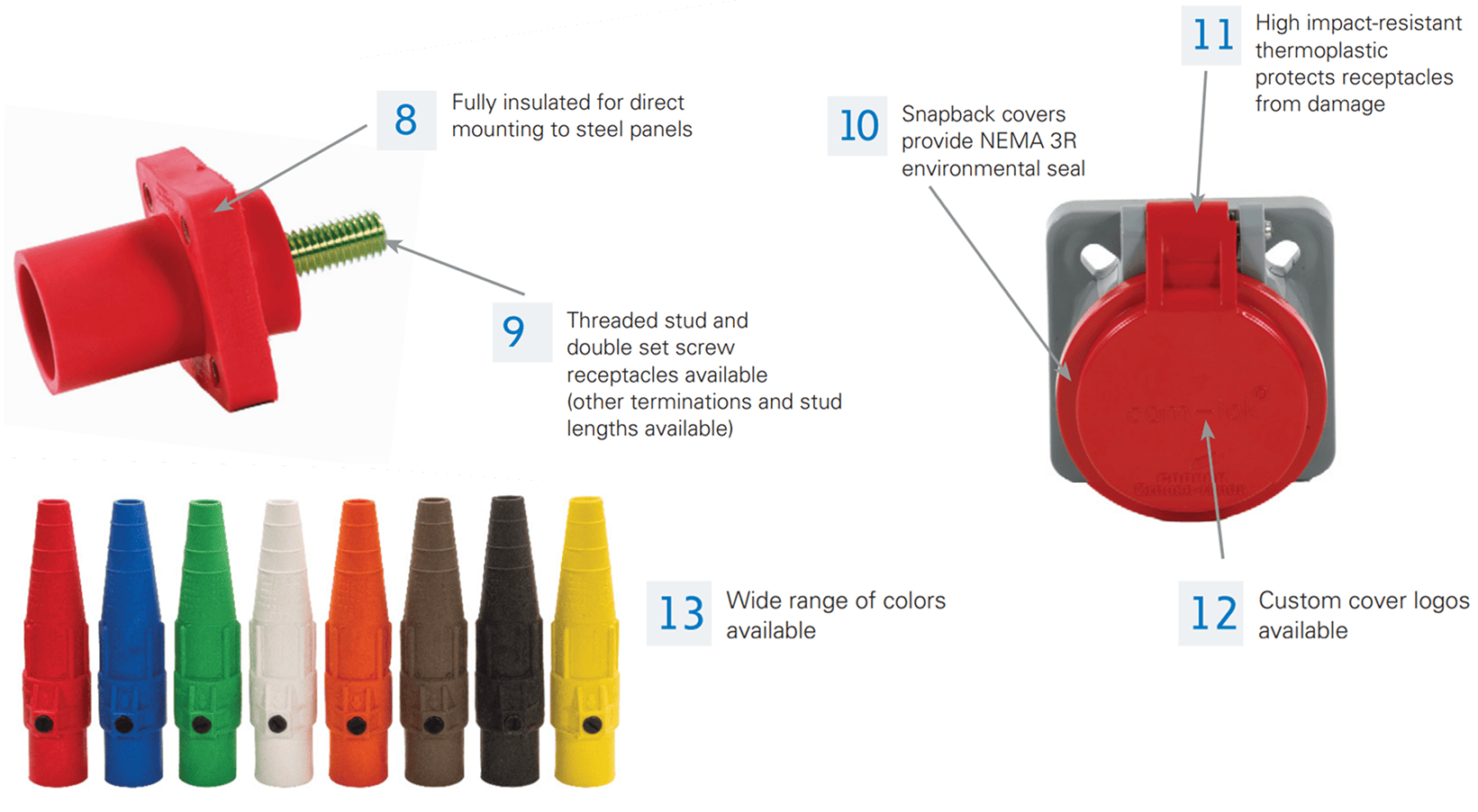

Cam-Lok™ J-Series connectors quickly replace traditional hardwiring and offer more safety with integrated watertight insulators and a strain relief system. Plus, a wide range of sizes, colors and accessories are available for complete fl exibility
Cam-Lok™ J-Series connectors are specifically designed to meet the needs of demanding portable applications. J-Series plugs and receptacles are the proven industry standard single pole connectors for reliability and service with added safety.
Applications
J-Series plugs and receptacles are specifically designed for industrial power distribution applications requiring quick, tool-free connections.

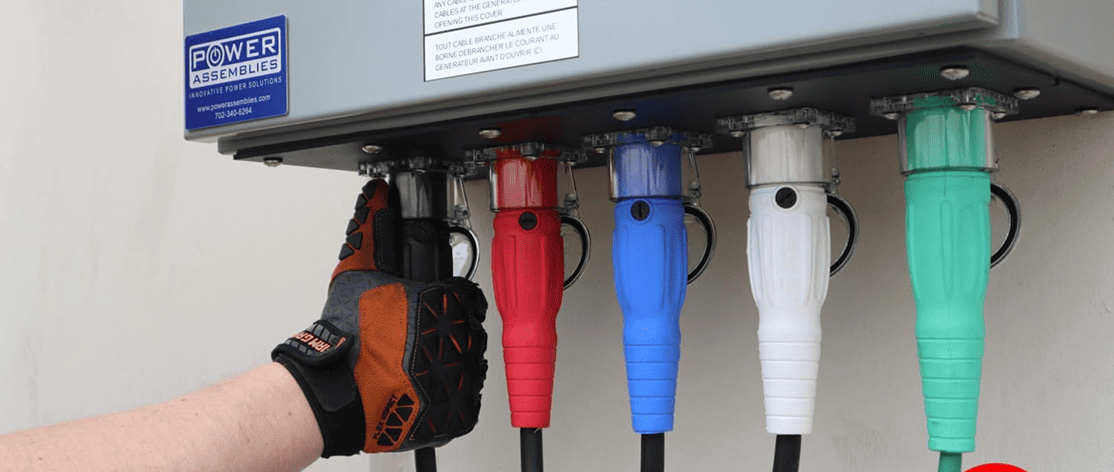

Ideal for portable power, power distribution, motors, generators and entertainment applications; J-Series replaces traditional hardwiring while cutting downtime and maintenance.
J-Series connectors are insulated, shatter/crack resistant and water tight plus heat, weather, ozone, oil and abraision resistant.
Specifications
Electrical ratings
• 600 Volts AC/DC
• 690 Amps Continuous
Temperature ratings
• -40º C to 105º C
Materials
Accepts cable sizes: #8 AWG – 800 MCM
Insulator material: Elastomeric or Rubber
Contact material: Brass or Copper
Environmental
• NEMA 3R or NEMA 4
Certifications
• Listed to UL1691
• Listed to CSA C22.2 No. 1691-12
• CSA certified to C22.2, no. 182.3 LR13963
