Single Pole Connectors Cam-Lok Cable Size 6

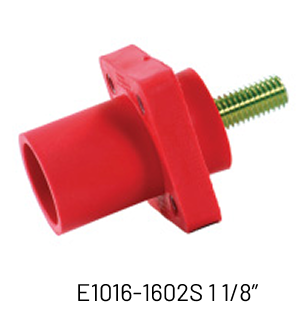

Single Pole Connectors Cam-Lok™ J-Series E1016 Receptacles

Double cam principle provides a positive, vibration-proof connection.
Self-compensating for wear.
No moving contact surfaces, eliminating arcing or burning.
Superior electromechanical connections.
Locked contacts will withstand a pulling force of 1,000 lbs.
1/3 of a turn assures a high pressure contact approaching 600 lbs. per sq. in. providing minimum resistance.
Contacts carefully machined from a high conductivity brass to a smooth sliding fi t and easy locking action.
Watertight elastomeric body molded from colorfast material, color-coded for easy phase identify cation.
Recessed contacts protected by insulating jacket that extends beyond contact ends for safety.
Receptacles are safety insulated for direct mounting to steel panels.
