Single Pole Connectors Cam-Lok™

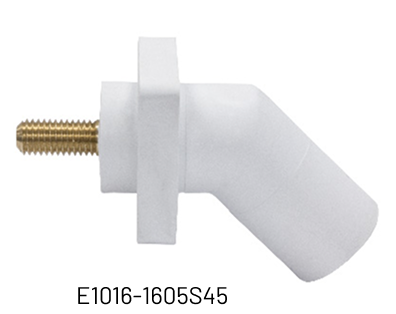

J-Series E1016 receptacles

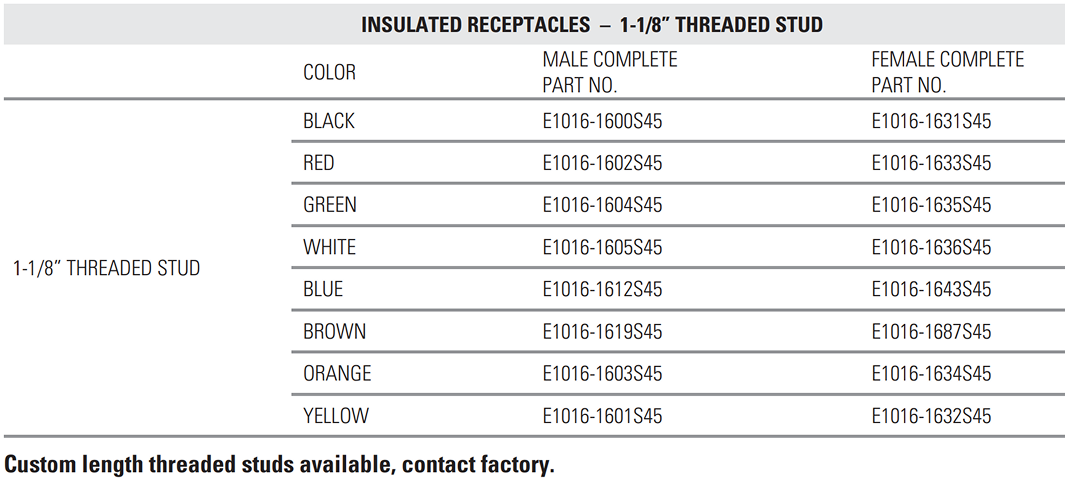

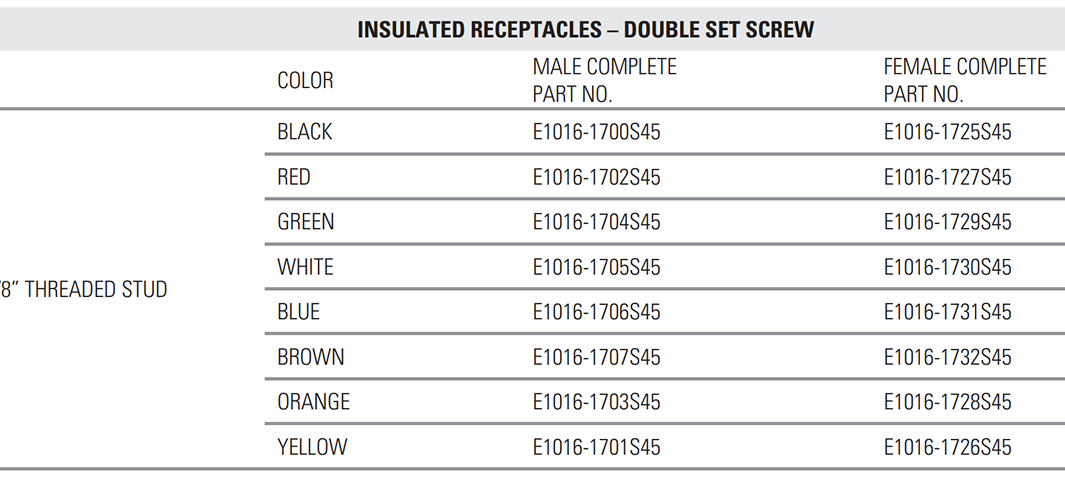

Cable Size #2 AWG – 4/0 (threaded stud); 1/0 – 4/0 (double set screw)
600V AC/DC, Up to 400A Continuous
NEMA 3R

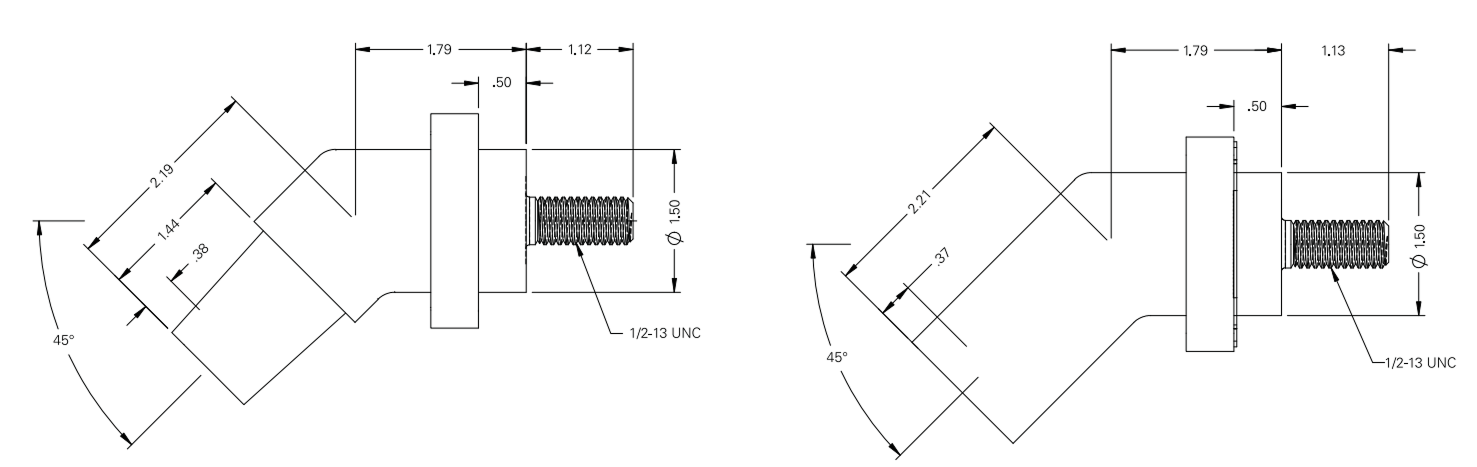

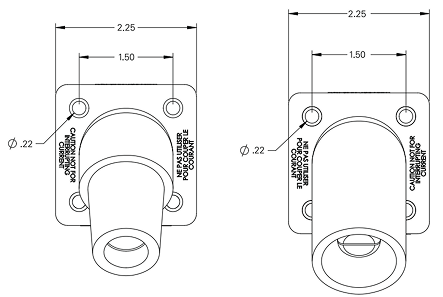

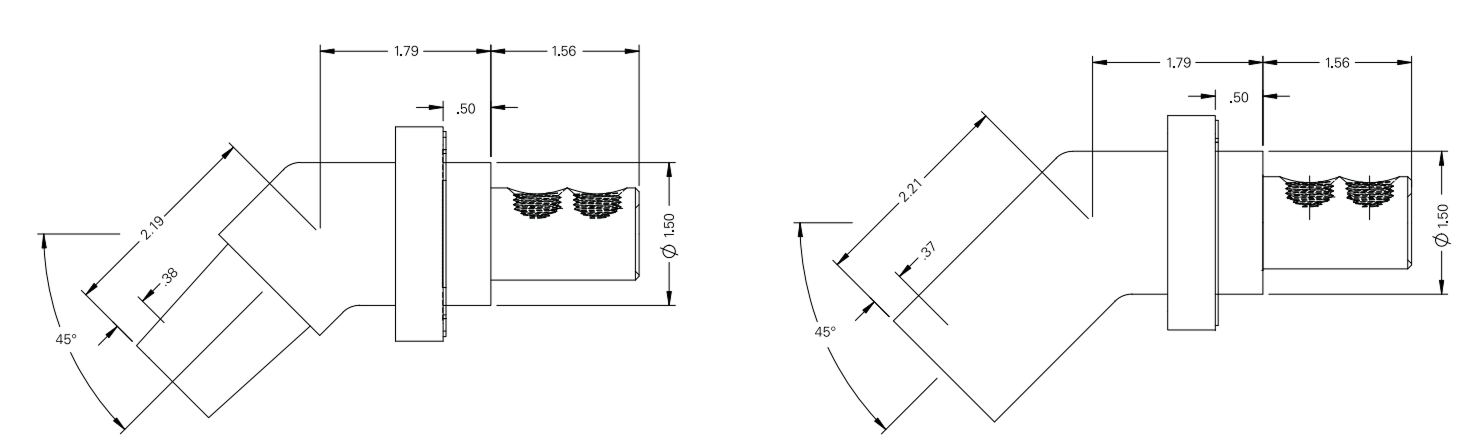

J-Series E1016 elastomeric, non-vulcanized, 45° angled Features
Double cam principle provides a positive, vibration-proof connection.
Self-compensating for wear.
No moving contact surfaces, eliminating arcing or burning.
Superior electromechanical connections.
Locked contacts will withstand a pulling force of 1,000 lbs.
1/3 of a turn assures a high pressure contact approaching 600 lbs. per sq. in. providing minimum resistance.
Contacts carefully machined from a high conductivity brass to a smooth sliding fi t and easy locking action.
Watertight elastomeric body molded from colorfast material, color-coded for easy phase identify cation.
Recessed contacts protected by insulating jacket that extends beyond contact ends for safety.
Receptacles are safety insulated for direct mounting to steel panels.
CERTIFICATIONS
Listed to UL1691
Listed to CSA C22.2 No.1691-12
CSA certified to C22.2, No. 182.3 LR13963
NEMA 3R
MATERIALS
Body: TPE
TEMPERATURE RATING
Operating ambient: -40º C to 105º C
